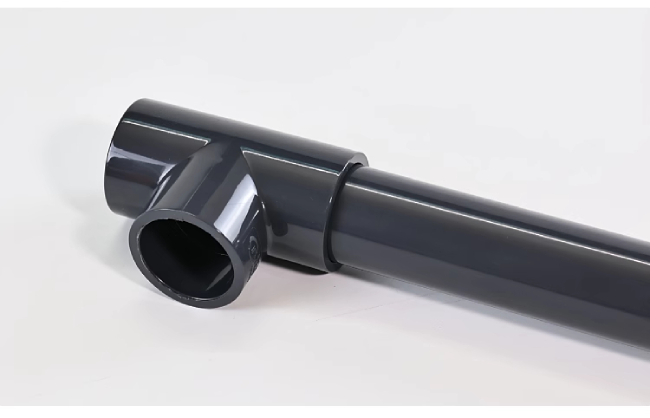

UPVC Straight Tee

Product Overview

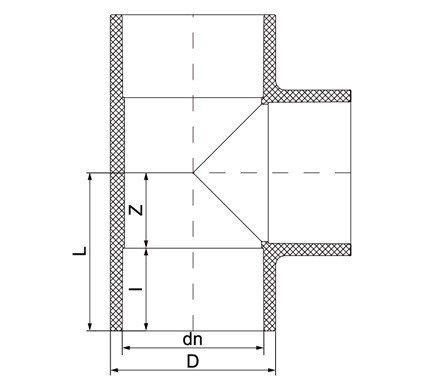

Industrial UPVC Straight Tees are manufactured from high-purity rigid polyvinyl chloride, conforming to GB/T 10002.2 industrial standards. Suitable for diameters ranging from 20-250mm, the verticality tolerance between main and branch pipes is ±0.5°. The S6.3 series 20mm specification features a working pressure ≤2.0MPa and Temperature resistance ranges from -10°C to 45°C. Inner wall thickness uniformity error is ≤0.1mm, efficiently achieving fluid diversion and convergence in industrial pipelines.

Fitting Characteristics
Bending strength ≥45MPa, impact strength ≥8kJ/m². Resists corrosion from 20% sulfuric acid and 30% sodium hydroxide solutions. Inner wall roughness Ra ≤ 0.01mm, with fluid resistance 30% lower than steel tees; Oxygen index ≥ 40% achieving flame retardant B1 grade, weighing only 1/7th of steel tees of the same specification. Complies with GB/T 17219 hygiene standards, free from heavy metal leaching, and shows no scaling during long-term use.

Manufacturing Process
Utilizes UPVC resin with polymerization degree 1200-1600, molded via single-shot injection molding in a three-cavity integrated mold (precisely controlling branch pipe verticality). Injection temperature: 170-190°C; segmented cooling and setting at 22-26°C. Interior walls undergo high-pressure spray smoothing. Each batch undergoes sampling for 2.0 times nominal pressure hydrostatic testing (30-minute pressure retention with zero leakage). Dimensions are laser-inspected for accuracy (±0.2mm tolerance) before packaging.

Application Scenarios
Industrial Water Supply & Drainage: Used for diverging/converging industrial plant water networks. Resists industrial wastewater corrosion, operates stably at 2.0MPa pressure, and features low-resistance design to enhance industrial water transmission efficiency.
Chemical Auxiliary Piping: Connects auxiliary fluid pipelines (e.g., cooling water, solvents) for diverging flows. Withstands mildly corrosive media, meets sanitary standards, and ensures precise fluid distribution in chemical auxiliary processes.
Electronics Factory Piping: Suitable for combined cleaning water and circulating water pipelines in electronics facilities. Resists cleaning solution corrosion with excellent sealing to prevent leaks, meeting clean production requirements for the electronics industry.
Food Processing Workshops: Used for branching water supply networks in food processing workshops. Meets sanitary standards with residue-free inner walls to prevent fluid contamination, ensuring food processing water safety.
Electroplating Support Systems: Connects auxiliary water pipelines in electroplating workshops for diversion. Resists mild acid/alkali corrosion and meets pressure standards, supporting stable delivery of auxiliary fluids in electroplating production.

Usage Precautions
Before installation, inspect port flatness and inner wall cleanliness; remove burrs and impurities. Use specialized UPVC industrial adhesive for pipe bonding. Apply adhesive evenly (0.1-0.15mm thickness) to bonding surfaces, let stand 3-5 seconds before joining. Do not exceed operating temperatures (>45°C) or pressures (>2.0MPa). Avoid impact on branch pipe connections. Inspect joint integrity every six months. Replace or re-bond immediately if leakage occurs. Do not use for transporting strong oxidizing media.
