UPVC Saddle Seat

Product Overview

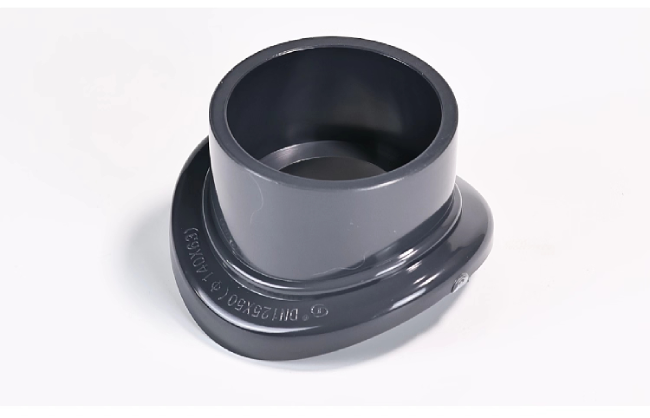

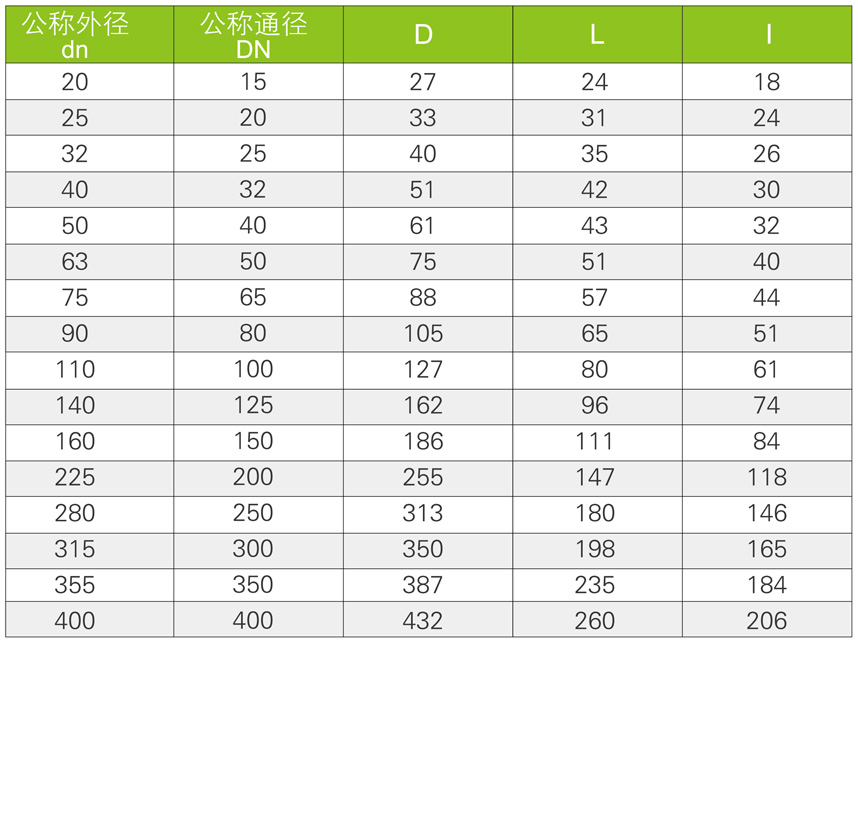

UPVC saddle fittings are manufactured from high-purity rigid polyvinyl chloride (PVC) in compliance with GB/T 10002.2 standards. They accommodate main pipe diameters of 50-315mm and branch pipe diameters of 20-110mm. with a saddle seat fit ≥98%. The S6.3 series operates at pressures ≤1.6MPa and withstands temperatures from -10°C to 45°C. It enables pipe branching without cutting the main pipe, significantly boosting construction efficiency.

Fitting Features
Tensile strength ≥48MPa, impact resistance ≥7.5kJ/m², withstands corrosion from 20% sulfuric acid and 30% sodium hydroxide solutions. The saddle features an arc-shaped design (curvature radius matching error ≤0.5mm relative to the main pipe), incorporating an EPDM rubber ring within the sealing surface for 99.5% sealing efficiency. Oxygen index ≥40% meets B1 flame retardant rating; weighs only 1/6 of equivalent steel fittings; complies with GB/T 17219 hygiene standards with no heavy metal leaching.

Manufacturing Process
Utilizes UPVC resin with polymerization degree 1200-1600 via dual-color injection molding (main body UPVC + integrated sealing ring), injection temperature 175-195°C, segmented cooling and setting at 22-26°C; Saddle surfaces undergo precision milling (flatness tolerance ≤0.03mm). Each batch undergoes sampling for 1.8 times nominal pressure hydrostatic testing (30-minute pressure retention with zero leakage). Dimensions are verified via 3D inspection (tolerance ±0.2mm) before packaging.

Application Scenarios
Industrial Plant Piping Networks: Used for adding branch pipes to factory water supply networks (e.g., workshop replenishment points) without interrupting main lines. Operates stably at 1.6MPa pressure, minimizing production downtime during construction.
Municipal Water Supply & Drainage: Suitable for adding monitoring ports or branch pipes to municipal sewage networks. Resists sewage corrosion with reliable sealing, avoiding service interruptions during network renovations.
Agricultural Irrigation: Used for branching connections in main irrigation pipelines (e.g., branching to field branch pipes). Resistant to outdoor environmental aging, easy to install, and accommodates rapid expansion needs of irrigation systems.
Commercial Building Piping: Adds new water points (e.g., restroom replenishment) to shopping malls and office buildings without disrupting existing pipelines, ensuring uninterrupted building water supply.
Water Treatment Systems: Connects treatment equipment (e.g., filters, chemical dosing units) to main pipelines without shutting off the main line, maintaining continuous system operation.

Connection Methods with Other Fittings and Pipes
First, clean the connection area of the main pipe and mark the drilling position. Use a specialized hole cutter (with a diameter matching the branch pipe’s inner diameter) to drill a hole in the main pipe. After clearing debris, align the saddle joint’s saddle with the main pipe and evenly tighten the matching bolts (made of 304 stainless steel) to a torque of 8-15 N·m (adjust according to pipe diameter). For branch pipe connections, use socket fusion bonding. Insert the branch pipe into the fitting’s branch port (to a depth of 15-25mm). Apply specialized UPVC adhesive and allow 24 hours for curing to achieve a sealed connection.
