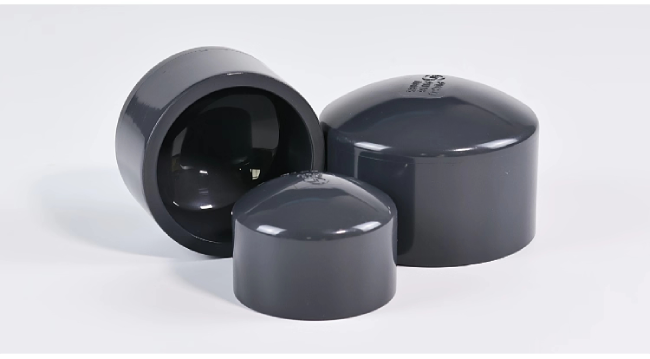

UPVC End Cap

Product Overview
UPVC blind flanges (end caps) are manufactured from high-purity rigid polyvinyl chloride, compliant with GB/T 10002.2 standards. They accommodate diameters ranging from 20 to 250 mm, with sealing surface flatness tolerance ≤0.02 mm. The S6.3 series operates at pressures ≤2.0MPa and withstands temperatures from -10°C to 45°C. Specifically designed for sealing industrial pipeline ports, it prevents fluid leakage and contamination ingress.

Fitting Features
Compressive strength ≥50MPa, resistant to 20% sulfuric acid and 30% sodium hydroxide corrosion. Sealing surface features a curved transition design (radius ≥0.5mm), achieving 99.8% sealing efficiency with pipes. Oxygen index ≥40% meets flame-retardant B1 grade; weighs only 1/8th of steel plugs of equivalent specifications; complies with GB/T 17219 hygiene standards, odorless with no heavy metal leaching.

Manufacturing Process
Molded via single-cavity precision injection molding using UPVC resin with polymerization degree 1200-1600 (ensuring precise sealing surface accuracy). Injection temperature: 170-190°C; segmented cooling and setting at 22-26°C. Sealing surfaces undergo polishing (roughness Ra ≤ 0.8μm). Each batch undergoes sampling for 2.0 times nominal pressure hydrostatic testing (30-minute pressure retention with zero leakage). Dimensions are verified via caliper inspection (tolerance ±0.1mm) before packaging.

Application Scenarios

Industrial Pipeline Maintenance: Temporarily seals ports during factory pipeline repairs to prevent leakage of residual fluids and ingress of external contaminants, ensuring maintenance safety and pipeline cleanliness.
Pipeline System Commissioning: Seals unused branch ports during industrial pipeline system commissioning to maintain stable system pressure and prevent fluid leakage during testing.
Equipment Maintenance: Connects to standby interfaces of industrial equipment (e.g., pumps, heat exchangers). Provides long-term sealing to prevent internal medium evaporation and external contaminant ingress, preserving equipment performance.
Municipal Pipeline Renovation: Suitable for temporary port sealing during municipal water supply/drainage pipeline renovations. Resistant to sewage corrosion with reliable sealing, preventing sewage overflow and environmental contamination during renovations.
Laboratory Piping: Used for sealing unused ports in small laboratory fluid pipelines. Meets sanitary standards, resists chemical corrosion, and prevents experimental medium leakage that could affect the laboratory environment.

Connection Methods with Other Pipe Fittings
Primarily socket-welded. Before connection, roughen the sealing surface of the blind cap and the pipe end (insertion depth 5-10mm, adjust per diameter) with sandpaper to a roughness of Ra 1.6-3.2μm. After cleaning debris, evenly apply specialized UPVC adhesive (thickness 0.1-0.15mm) to both contact surfaces. Align and insert, then apply light pressure for 30 seconds. Allow 24 hours for complete curing to achieve a sealed connection. For temporary sealing, use a rubber gasket to enhance sealing performance.
