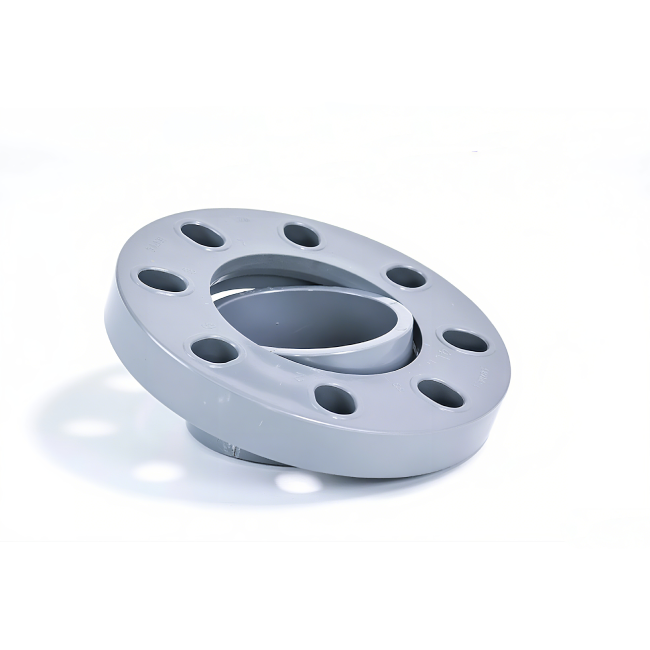

CPVC Van Stone Flange

Product Overview
CPVC Pipe Fittings Loose Flanges are manufactured from high-purity chlorinated polyvinyl chloride (CPVC) in compliance with GB/T 18993.2 standards. Available in nominal diameters ranging from 20 to 200 mm, they are compatible with CPVC chemical pipes of the same specification. Designed for working pressures ≤1.6 MPa, the sealing surface roughness Ra is ≤0.8 μm, enabling a detachable sealed connection for easy installation and disassembly.

Fitting Features
Features a “loose flange + sealing ring” structure with tensile strength ≥52MPa and impact strength ≥11kJ/m². Operates stably in environments from -40°C to 90°C, withstands corrosion from 95% sulfuric acid and 30% sodium hydroxide. Achieves 97% material compatibility with pipes, with sealing ring compression recovery rate ≥85%. Weighing only 1/6 of steel slip-on flanges, with a flame retardancy oxygen index ≥40%.

Manufacturing Process
Utilizes CPVC resin with polymerization degree ≥1000. The slip-on body undergoes injection molding at 180-200°C (mold precision ±0.05mm). The sealing ring is integrally molded from specialized elastic CPVC material. Gradient cooling at 25-35°C completes shaping. The entire assembly undergoes hydrostatic testing at 1.5 times nominal pressure (maintaining pressure for 30 minutes without leakage). Packaged after passing inspection.

Application Scenarios
Chemical Industry: Used for detachable connections in acid/alkali pipelines within chemical workshops. Withstands 90°C temperatures and strong corrosion, ensuring reliable sealing at 1.6MPa pressure. Facilitates pipeline maintenance and repairs.
Pharmaceutical Industry: Suitable for connecting pharmaceutical intermediate transport pipelines. Meets GB/T 17219 hygiene standards with no impurity residue. Easy disassembly and assembly ensure pharmaceutical production cleanliness.
Electronics Industry: Connects electronic chemical circulating water pipelines. Resists chemical corrosion with stable sealing performance, prevents water contamination, and meets component cooling requirements.
Electroplating Industry: Used for connecting electroplating waste liquid treatment pipelines. Resists strong corrosion from waste liquids. The slip-on design facilitates disassembly, reduces leakage risks, and supports environmental treatment.
Industrial Water Supply: Compatible with industrial hot/cold water pipelines, maintains stable sealing from -40°C to 90°C, withstands 1.6MPa pressure, and facilitates future pipeline maintenance adjustments.

Usage Precautions
Before installation, clean flange sealing surfaces and pipe interfaces to remove oil and contaminants; ensure sealing rings are accurately seated in grooves to prevent misalignment; Tighten bolts symmetrically and evenly (torque adjustment by pipe diameter: 8-12 N·m for 20-63 mm, 15-25 N·m for 75-200 mm). Prohibit prolonged operation exceeding temperatures (>90°C) or pressures (>1.6 MPa). Periodically inspect bolt tightness and sealing surfaces; replace sealing rings immediately upon detecting leaks.
