CPVC S6.3 pipeline

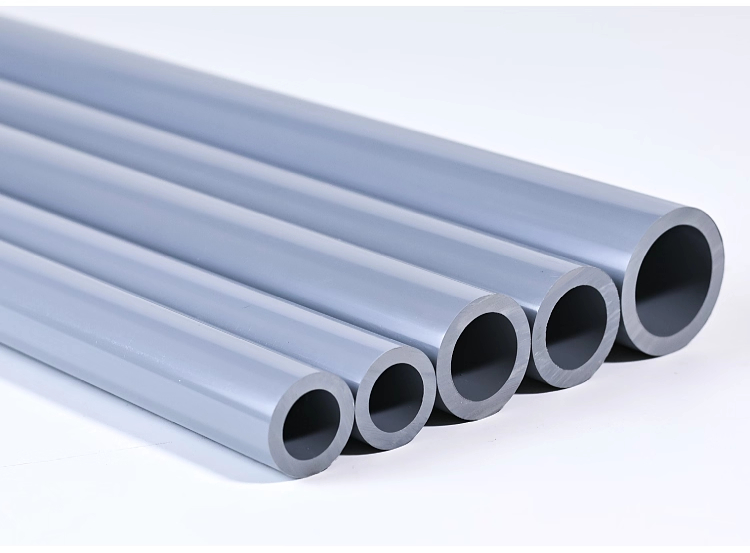

CPVC Chemical Pipe Product Overview

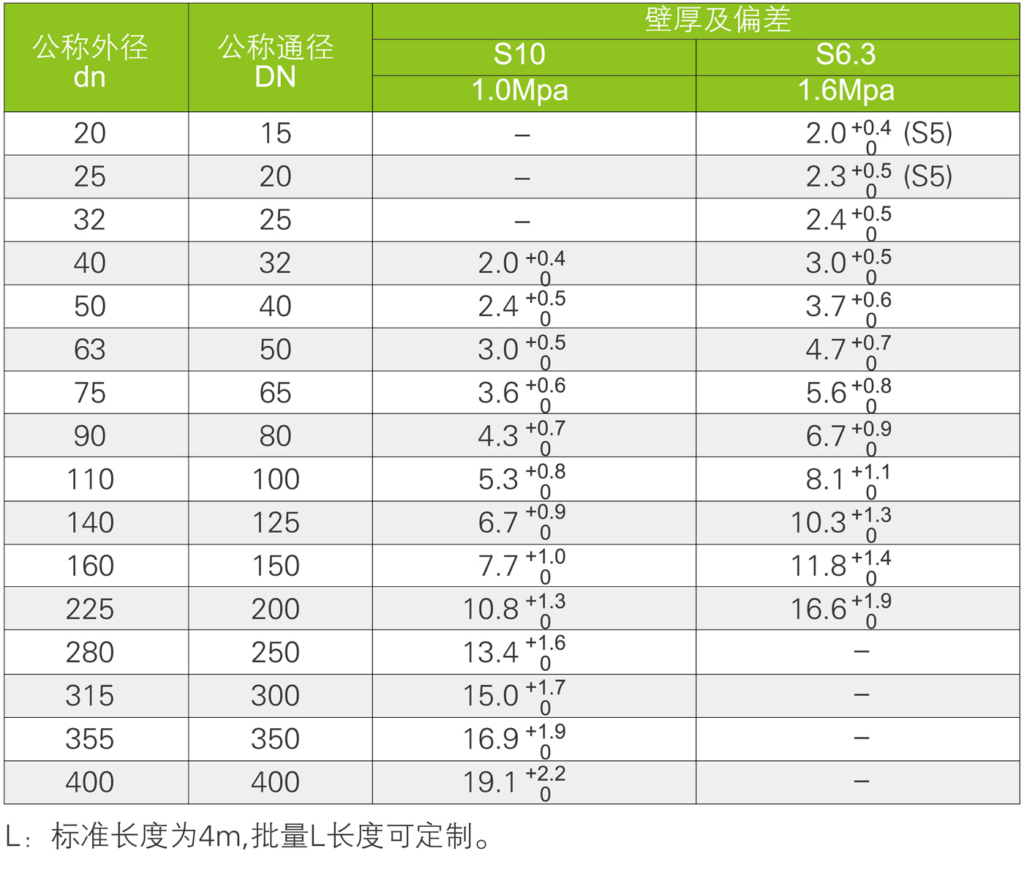

Industrial CPVC Chemical Piping S6.3 is manufactured from high-purity chlorinated polyvinyl chloride (CPVC) in compliance with GB/T 18993.2-2003 standards. With nominal outer diameters ranging from 20 to 160 mm and a temperature resistance span of -40°C to 90°C, it offers exceptional corrosion resistance, providing stable and reliable piping solutions for industrial fluid transportation.

Advantages and Features of CPVC Chemical Piping

This piping achieves a maximum pressure rating of 1.6MPa (S6.3 series, 20mm specification) and a maximum operating temperature of 90°C. It withstands highly corrosive media such as 98% sulfuric acid and 30% hydrochloric acid. With an oxygen index ≥40%, it exhibits excellent flame retardancy. Its thermal expansion coefficient is only 0.07mm/(m·℃), and its hygiene standards comply with GB/T 17219 requirements, with a bacterial growth rate <0.1%/day.

CPVC Chemical Pipe Manufacturing Process

Utilizes CPVC resin with polymerization degree ≥1000, processed through high-speed mixing (120°C), twin-screw extrusion (180-200°C), vacuum sizing, spray cooling (water temperature 25±5°C), online wall thickness inspection (accuracy ±0.1mm), and fixed-length cutting (error ≤0.5mm/m). Finished products undergo packaging after passing 1.5 times nominal pressure hydrostatic testing.

Application Scenarios for CPVC Chemical Piping

• Hot/Cold Water Conveyance Systems: Suitable for industrial hot/cold water transport in chemical and metallurgical sectors. Operates stably within -40°C to 90°C temperature range, accommodates pressures up to 1.6MPa, ensuring efficient fluid conveyance.
• Chemical Acid/Alkali Transfer Engineering: Safely conveys highly corrosive media like 98% sulfuric acid and 30% hydrochloric acid. Used in chemical reactor feed lines and acid/alkali waste liquid treatment pipelines to eliminate leakage risks.
• Power Engineering Fluid Conveyance: Used for slurry transport in power plant desulfurization and denitrification systems. Resists corrosion from desulfurization slurries and operates continuously under 0.8-1.2MPa pressure, meeting the demanding conditions of power engineering.
• Electronics and Chemical Fields: Meets hygiene standards for electronic-grade fluid conveyance. Used in semiconductor cleaning solution and electronic chemical pipelines to prevent impurity contamination and ensure product purity.
• Pharmaceutical Intermediate Production: Meets pharmaceutical industry hygiene standards for conveying solvents and semi-finished products during synthesis. Features a smooth inner wall with no material residue, complying with GMP requirements.
