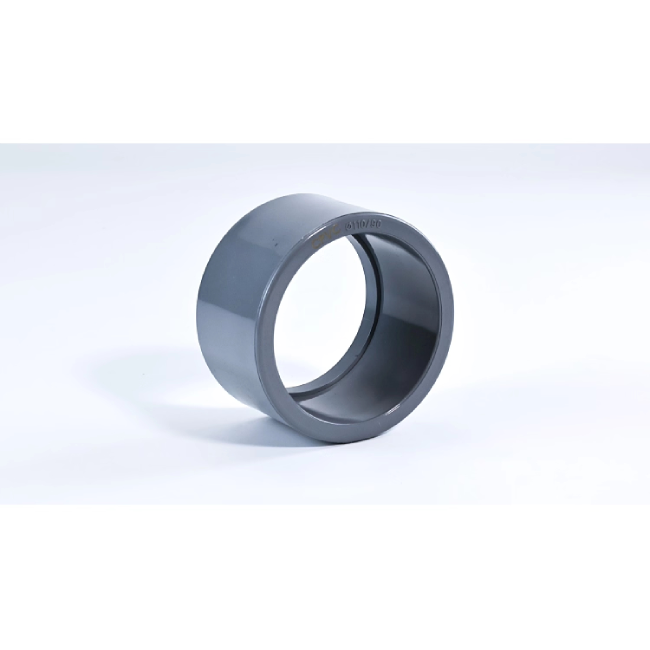

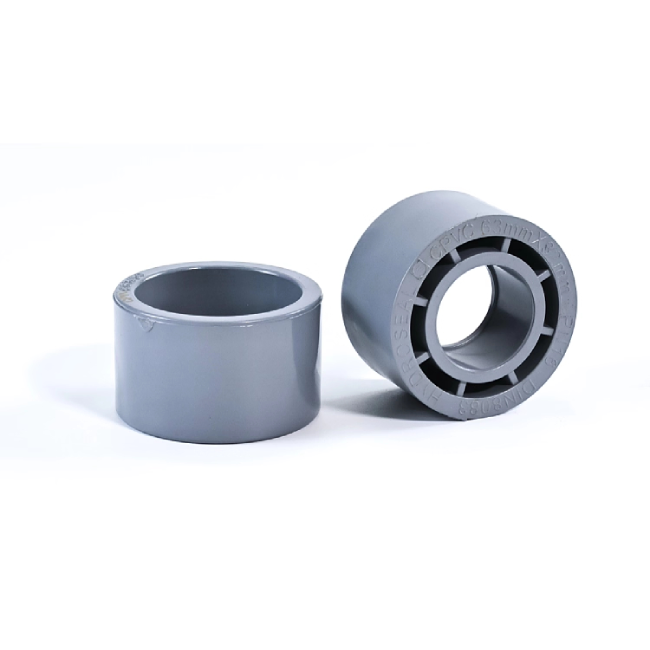

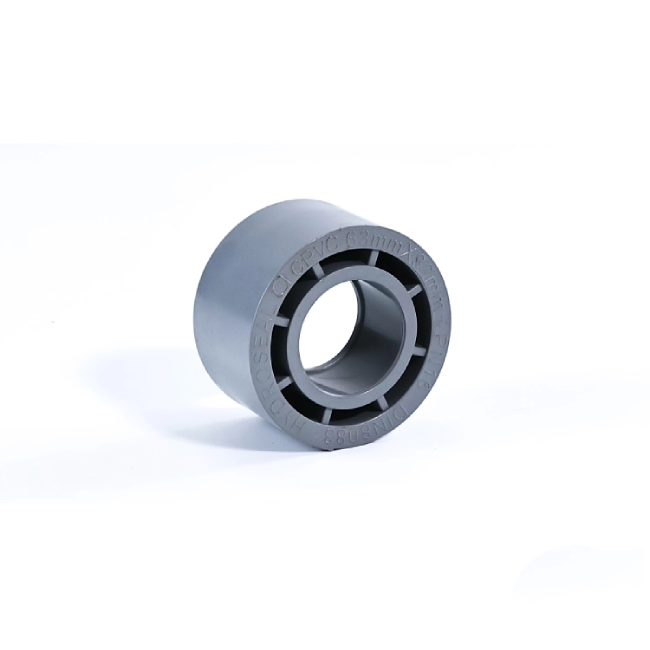

CPVC Bushing

Product Overview
CPVC reducers are manufactured from high-purity chlorinated polyvinyl chloride (CPVC) in compliance with GB/T 18993.2 standards. They accommodate pipe diameters ranging from 20 to 110 mm (e.g., 32×20 mm, 50×32 mm), with a working pressure ≤1.6MPa and temperature resistance from -40°C to 90°C. Internal and external thread precision conforms to GB/T 7307, enabling reducer connections between pipes/fittings of different specifications with a concentricity error ≤0.05mm.

Fitting Characteristics
Tensile strength ≥52MPa, impact strength ≥8.5kJ/m², resistant to 95% nitric acid and 20% sodium hydroxide corrosion; thread sealing surface roughness Ra ≤1.2μm, achieving 99.8% sealing efficiency; Oxygen index ≥40% achieving flame retardant B1 rating; weight only 1/5 of equivalent steel-reinforced fittings; no metal ion leaching; hygienic compliance with GB/T 17219.

Manufacturing Process
CPVC resin with polymerization degree ≥1000 is selected. Precision injection molding using embedded molds (simultaneous processing of internal and external threads) at 190-210°C. segmented cooling and setting at 25-35°C; threaded sections undergo go/no-go gauge inspection (±0.03mm tolerance), with each batch sampled for 1.8 times nominal pressure hydrostatic testing (30-minute pressure retention without leakage). Packaged upon passing inspection.

Application Scenarios
Chemical Pipeline Systems: Connects CPVC pipes and valves of varying specifications, ensuring stable transmission of acidic/alkaline media at 1.6MPa pressure. Withstands temperature-adapted operating conditions, guaranteeing seal integrity during chemical fluid transition between different diameters.
Pharmaceutical Manufacturing: Used for connecting pharmaceutical pipelines and equipment of different diameters. Complies with sanitary standards, prevents impurity leaching, and ensures cleanliness and safety during pharmaceutical intermediate transport.
Electronic Ultra-Pure Water Systems: Accommodates diameter variations in ultra-pure water pipelines. Features smooth, dead-angle-free inner walls to prevent water contamination, meeting precision requirements for high-purity water transport in electronics manufacturing.
Electroplating Wastewater Treatment: Connects CPVC waste liquid pipes of varying specifications. Resists strong corrosion with threaded seals preventing leaks, facilitating smooth fluid transition in electroplating wastewater treatment systems.
Industrial Hot/Cold Water Engineering: Used for connecting hot/cold water pipes to metal fittings with different diameters. Operates stably from -40°C to 90°C with pressure resistance meeting standards, ensuring efficient transmission of hot/cold fluids.

Usage Precautions
Before installation, inspect the integrity of internal and external threads and remove surface contaminants. When connecting to pipes/fittings, wrap the external threaded end with PTFE tape (0.1-0.2mm thick, 3-5 wraps) and apply torque between 6-12 N·m. Do not exceed operating temperatures (>90°C) or pressures (>1.6 MPa). Avoid striking threaded areas. Inspect joint sealing every 6 months. Replace or reseal immediately if leakage occurs.
